Two Storey/ Design No.164 - Ashfield

Bedrooms:  4
Floor Area:  168.25 Sqr. M
Frontage:  11.38 M
Overall Height:  8.91 M

DESCRIPTION

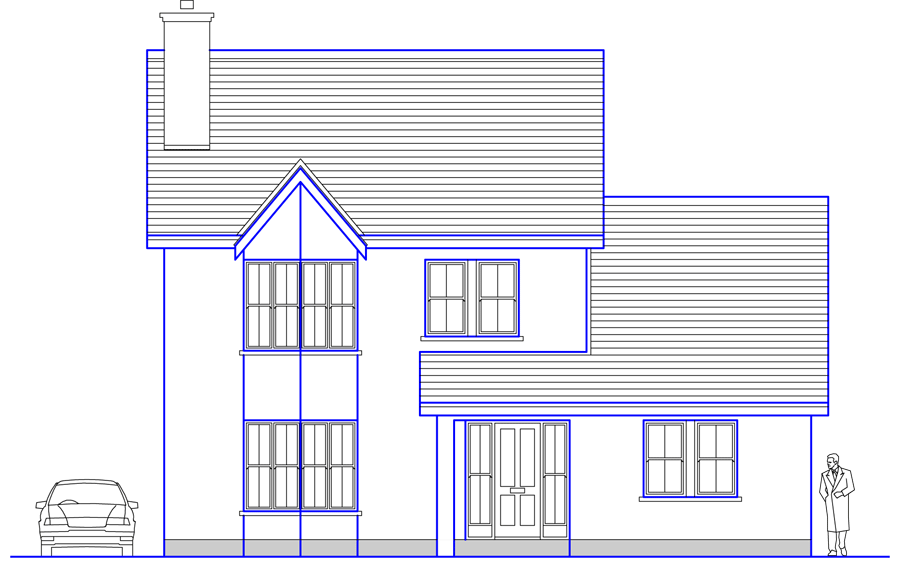

Substantial two storey dwelling suited to sub-urban or cluster development. Rendered finish to front elevation. The accommodation is well laid out for family occupation. A contemporary window design feature is included for the sitting room and master bedroom.


DIMENSIONS

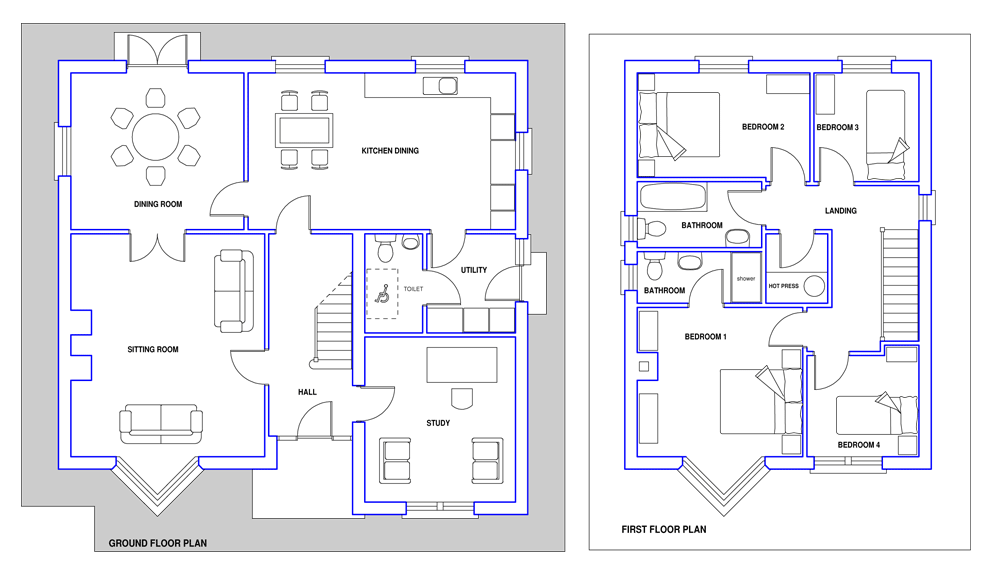

Ground floor





Dining room
4.20
M
x
3.80
M
Kitchen/dining room
6.48
M
x
3.80
M
Utility room
2.40
M
x
2.15
M
Toilet
2.40
M
x
1.40
M
Study
4.00
M
x
3.65
M
Hall & stairs
2.03
W
-


Sitting room
5.40
M
x
4.70
M






First floor





Bedroom 1
4.01
M
x
3.61
M
Ensuite bathroom
3.00
M
x
1.25
M
Bedroom 2
4.18
M
x
2.53
M
Bedroom 3
2.63
M
x
2.54
M
Bedroom 4
2.71
M
x
2.45
M
Bathroom
3.00
M
x
1.60
M
Landing with stairs & walk-in hot press.













Enquire about ordering this item »




House Plans: No.164 - Ashfield

Plan Slides



Plan Downloads

Download this file   No.164 - Ashfield Brochure (63 kb)

Plan Samples

Planning Stage

Example of a completed Planning/Construction Stage Plan, seven copies of the plan and Building Specification are included with your order.View PDF »

Site Layout Plan

Site Layout Plan/Site Location Maps are required for a Planning Application and set out the site dimensions, orientation, dwelling/garage location and other required details.View PDF »

Landscaping Proposal

Most Local Authorities require a Landscaping Proposal to form part of a Planning Application and setting out the site dimensions, orientation, dwelling/garage location, defined site boundaries, lawn areas, planting and schedule of species.View PDF »
